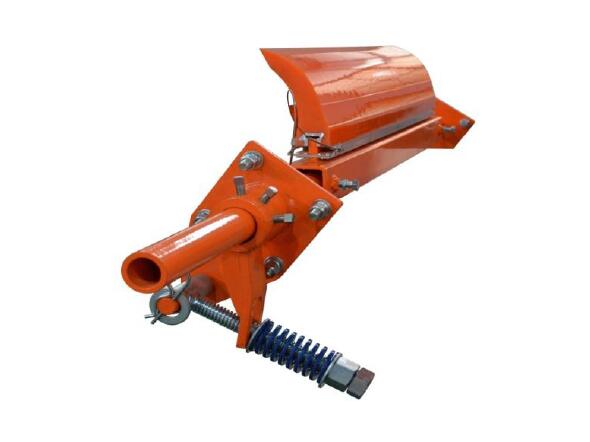

Product Image:
Product functions and uses:
The first-level XHD type cleaner is installed at the unloading roller of the belt head, which is used to remove the material adhered to the surface of the belt, reduce the situation of the belt in the return section of the belt conveyor, and reduce the cost of cleaning the belt Artificially.
Features:
1. The cleaner blade uses high polymer polyurethane material, which has excellent wear resistance and good cleaning effect;
2. The material of the cleaner blade is moderate in hardness, elastic and does not damage the belt;
3. The cleaner blade adopts a pull-out structure, which makes maintenance and replacement quick and easy;
4. The cleaner blade adopts integral molding casting technology, which can effectively prevent the material from passing through the blade and cause the cleaner to fail;
5. The cleaner adopts bilateral symmetrical elastic tensioner with constant torque, which can realize automatic compensation after blade wear;
6. The cleaner blade and frame are designed for heavy-duty application conditions, which can be used continuously, stably and reliably for a long time;
Applications

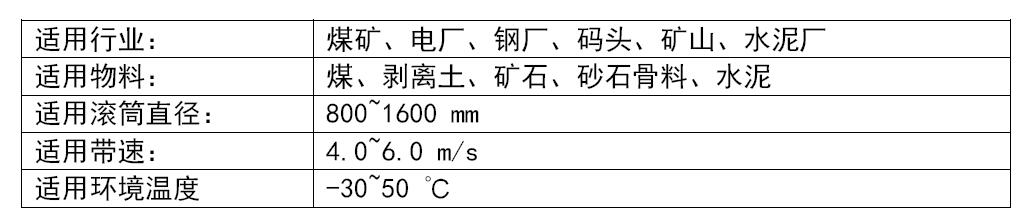

Polyurethane blade parameters

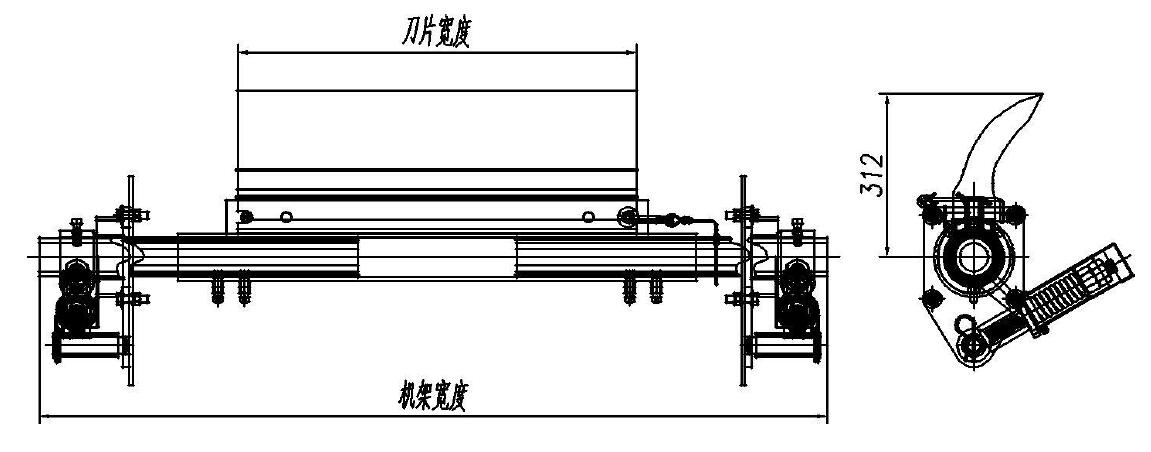

Product sketch

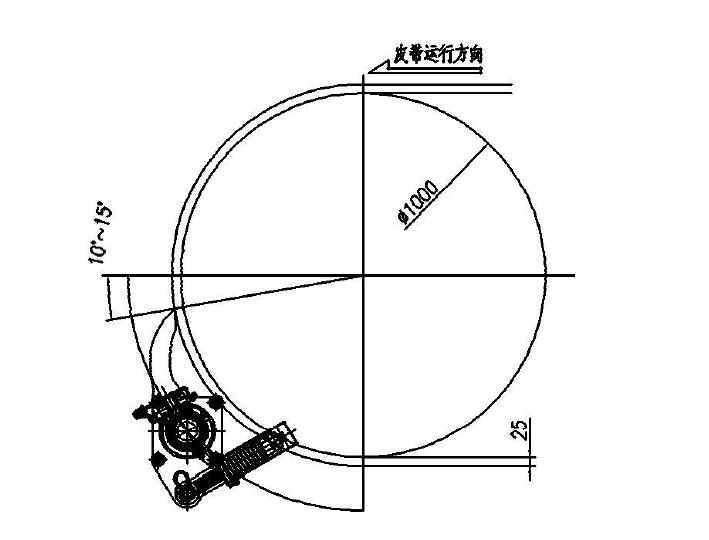

Product installation diagram

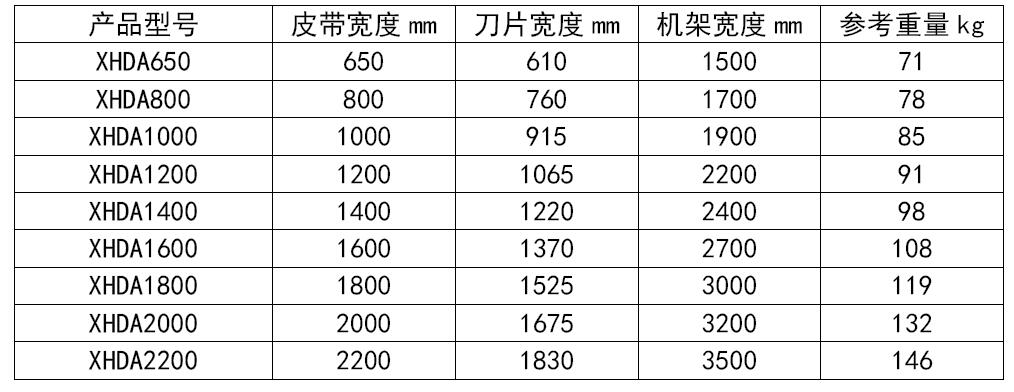

Product model list
